See what Broadway can do for you!

Broadway by PCTV Systems

Stream live TV to your iPhone®, iPad® or your Android® device – at home via Wi-Fi or around the world via the Internet!

Broadway by PCTV Systems is a TV receiver which streams live TV to an iPhone, iPad, Android device or PC or Mac – at home and anywhere via the Internet. Imagine, you can watch your home TV programs on your mobile device in a cafe in Paris or a hotel lobby in Las Vegas. That's TV anywhere! With Broadway, your living room TV programmes are now accessable when you go on vacation, on a business trip or any time you're away from home.

Broadway - a streaming DVR!

Broadway can also record your TV programmes in the original quality. All you need to do is plug in a USB thumb drive (not supplied) into a USB port on Broadway, and use the TV scheduler to set up a recording. Broadway supports two Internet transmission formats: one for Apple devices and one for devices which have Flash support. Broadway is completely stand alone and “always on” with low power consumption.

There are Broadway models for Freeview, Freeview HD and Freesat. Plus all Broadway models have an analog video input with IR blaster.

Broadway TV formats cover all of Europe

Broadway Triple HD 292 can be used with Freeview HD, Freeview and digital cable (DVB-C)

Broadway HD-S2 can be used with Freesat (DVB-S and DVB-S2)

Broadway TD has two built-in Freeview DVB-T receivers, so you can record one TV programme while watching another


example1
click to enlarge

Broadway by PCTV Systems

Watch live TV on your iPhone, iPad, Android device or PC or Mac – at home or around the world!

Get TV on your iOS® and Android® device – instantly!

Broadway is a small stand alone device which connects to your TV source (TV antenna, satellite dish or a cable set-top box) and sends live TV wirelessly to an Apple iPhone, iPad, Android phone or tablet or a PC or Mac. Live TV is transmitted by Broadway to your mobile device over your home Wi-Fi network or streamed over the Internet.

There are three Broadway models, for use with TV all over Europe

Broadway Triple HD 292

Broadway Triple HD 292 has a triple mode TV receiver that supports three TV formats: Freeview HD, Freeview and digital cable (DVB-C) transmission formats: one for Apple devices and one for devices which have Flash support.

Broadway HD-S2

Broadway HD-S2 contains one Freesat DVB-S / DVB-S2 receivers so you can watch live satellite TV on your mobile device.

Broadway TD

Broadway TD contains two Freeview DVB-T receivers so you can watch one TV programme while recording another Freeview programme.

TV for Apple devices

On Apple devices, live TV from BROADWAY is watched with Safari, so you don’t need to download an app. Simply open a Safari window, enter the Internet address of BROADWAY and you’ll be watching live TV!

TV for Android phones and tablets, PCs or Macs

For Android devices, PCs or Macs, simply open any Internet browser with Flash support, enter the Internet address of BROADWAY and you’ll be watching live TV! Now you have access to Freeview or Freesat everywhere at your home - even if you live in an area with weak DVB-T signal or you don't have a satellite antenna connection!

How does Broadway work?

Broadway connects between your TV source and your home Wi-Fi network. Broadway takes your TV signal, converts it to format which can be displayed on your mobile device (the Apple iPad and iPhone use one format type, while Android, PCs and Macs use another), and then sends the converted TV signal to your home router. Your home router then transmits the live TV signal to your mobile device via Wi-Fi or the Internet.

Broadway contains a versatile TV tuner with support for cable and satellite set top boxes, ATSC over-the-air TV signals and unencrypted digital cable TV (clear QAM). If you use a cable TV or satellite set top box to watch TV at home, Broadway connects to the audio and video signals on the set top box. Then from your Apple device no matter where you are in the world, you'll have full control of the TV channel selected on the set top box via Broadway's "IR-blaster" technology.

Broadway has a built-in high quality H.264 HD video encoder, which turns your TV signal into a form which can be played on the Apple iPhone or iPad, or into a form which can be played on other devices such as Android or a PC or Mac.

Broadway is "always on" with extremely low power consumption. Connect Broadway to your TV source, put it in a corner and Broadway will always be ready to send your favorite TV programs to your mobile device, anywhere in the world!

Broadway can also stream live TV to a PC or Mac

All that's required to watch live TV on your Mac is Safari. Broadway converts the live TV signal to a form which can be watched in Safari. If you would like to watch live TV on a PC, you can use any PC Internet browser such as Internet Explorer, Chrome or Firefox.

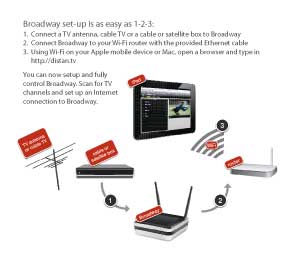

Broadway set-up is as easy as 1-2-3

  • Connect your TV source to Broadway: cable TV or satellite set top box, antenna or TV coax cable
  • Connect Broadway to your home router (Wi-Fi or wired)
  • Open a browser on your Apple device and type in http://distan.tv

Our distan.tv server makes the setup of Broadway a snap! You can now scan for TV channels and set up an Internet connection to Broadway.

Technically speaking

Broadway is a networked TV receiver which features a built-in cable ready TV tuner and set top box connections, a high definition H.264 compressor and a network connection with support for Ethernet and Wi-Fi using 802.11B or 802.11n.

Broadway converts and compresses the live TV signal to a Apple compatible H.264 video format (or Flash when transmitting to a Mac, PC or an Android phone) and streams it wirelessly to Apple® mobile devices via a home router. The Broadway router connection can be Wi-Fi or Ethernet.



Broadway Specifications and System Requirements

Broadway Triple HD 292
Technical specifications

Tuner

  • TV standards: Digital terrestrial DVB-T (MPEG-2, MPEG-4 AVC / H.264*) (Freeview over-the-air TV, in areas where available), DVB-T2 and DVB-C
  • Tuning range 174~862 MHz
  • Channel bandwidth 7, 8 MHz
  • Antenna input: IEC, 75 Ohm

TV standards supported by Broadway Triple HD 292

  • Freeview HD, Freeview, DVB-C
  • S-Video or composite video, e.g.
    • from a cable TV or satellite set top box
    • PAL or NTSC analogue camera

Broadway HD-S2
Technical specifications

Tuner

  • Satellite receiver for Freesat DVB-S2 and DVB-S (MPEG-2, MPEG-4 AVC / H.264)
  • Frequency range: 950MHz-2175MHz
  • Supports DiSEqC 1.0
  • Satellite connector: F-type, 75 Ohm

TV standards supported by Broadway HD-S2

  • DVB-S and DVB-S2 tuner for SDTV and HDTV
  • S-Video or composite video, e.g.
    • From a cable TV or satellite set top box
    • PAL or NTSC analogue camera

Broadway TD
Technical specifications

Tuner

  • TV standard: Digital terrestrial DVB-T (MPEG-2, MPEG-4 AVC / H.264*) (Freeview over-the-air TV, in areas where available)
  • Tuning range 174~862 MHz
  • Channel bandwidth 7, 8 MHz
  • Antenna input: IEC, 75 Ohm

TV standards supported by Broadway TD

  • Dual tuner Freeview DVB-T (SDTV and HDTV)
  • S-Video or composite video, e.g.
    • from a cable TV or satellite set top box
    • PAL or NTSC analogue camera

System Requirements

Hardware

  • Home router (required)
  • Internet access (highly recommended)
  • DVB-T signal and/or TV connection from cable or satellite box
  • For TV streaming at home: Wi-Fi connection to your home router (or wire LAN with a Mac/PC)
  • For TV streaming over the Internet: Home router connected to the Internet with an uplink speed of min. 256kbit/sec. Your mobile device should be connected to the Internet via Wi-Fi or a 3G connection.

Using Apple® handheld devices

  • iPad or iPhone (any version) or iPod Touch. Safari mobile webbrowser.
  • iOS 3 or later

Using Android® based handheld devices

  • Android 2.2 (“Froyo”) or higher with integrated Adobe Flash®
  • capable web browser

Using a Mac

  • Mac with OS X 10.5 or newer
  • Web browser (Safari recommended)
check

Using a PC

  • Microsoft® Windows 8®, 7®, Windows Vista with latest Service Pack or Windows XP Service Pack 3.
  • 1.5 GHz processor for SDTV
  • 2.6 GHz multi core processor for HDTV*
  • Web browser (Firefox, Internet Explorer, Safari, Chrome or Opera) for live TV streaming
  • for full PVR functionality install TV Center 6 from inluded CD-ROM

Broadway model numbers

model 23141: Broadway Triple HD 292

model 23104: Broadway HD-S2 Freesat satellite receiver

model 23080: Broadway TD dual tuner Freeview and English manual

Broadway Triple HD 292 includes:

  • Broadway Triple HD 292 unit
  • Power supply
  • DVB-T / DVB-T2 antenna
  • Ethernet cable
  • Quick start guide

Broadway HD-S2 includes:

  • Broadway HD-S2 digital satellite receiver
  • Power supply
  • IR blaster to control your external set top box (optional)
  • Ethernet cable
  • Quick start guide

Broadway TD includes:

  • Broadway TD unit
  • Power supply
  • DVB-T antenna
  • Ethernet cable
  • Quick start guide
